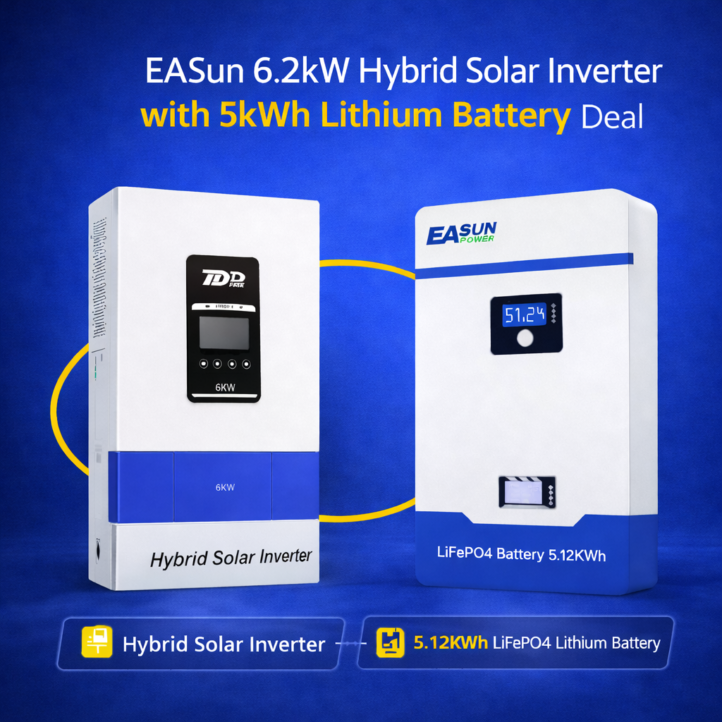

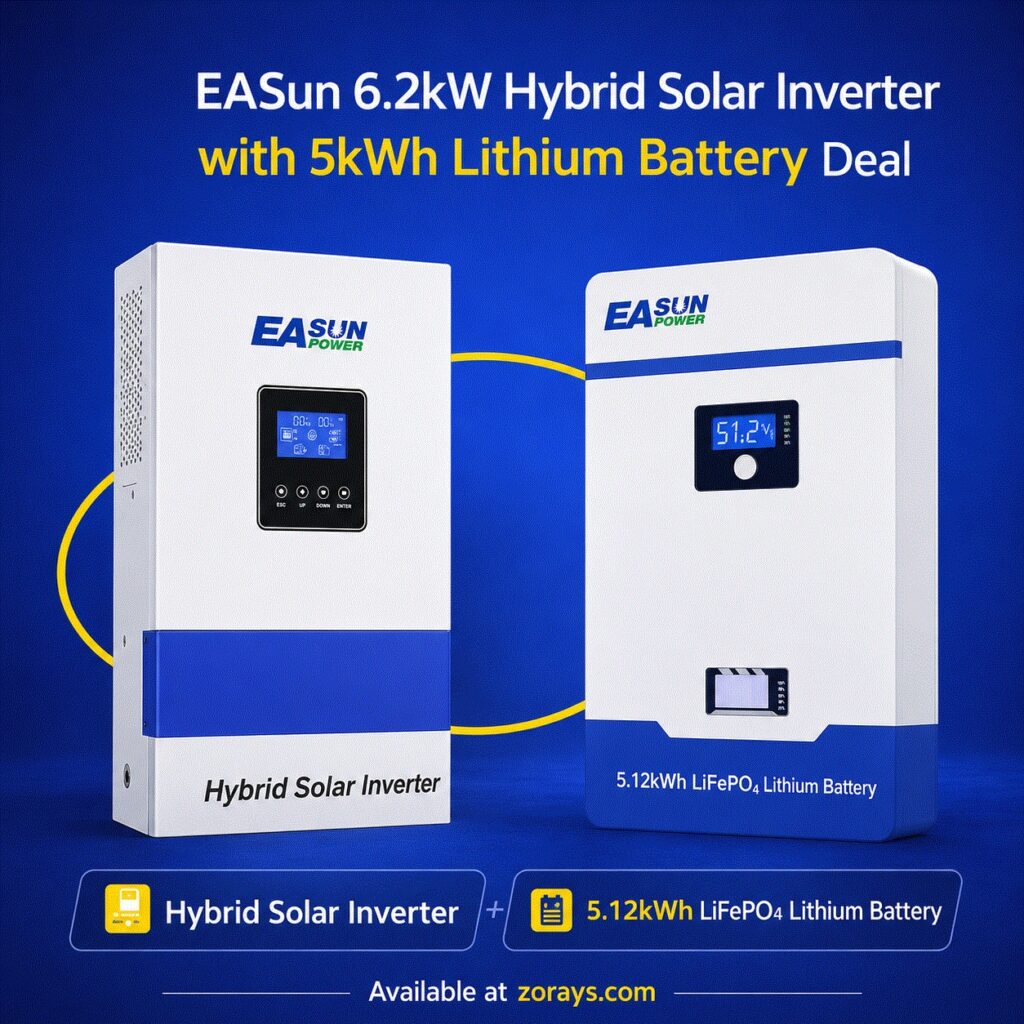

EASun 6.2kW Hybrid Solar Inverter with 5.12kWh LiFePO4 Lithium Battery Combo
Original price was: ₨ 340,000.₨ 291,000Current price is: ₨ 291,000.
Technical Specifications
🔷 Hybrid Solar Inverter (EASun 6.2kW)
Rated Power Output
6,200W (6.2kW)
Output Waveform
Pure Sine Wave
Nominal Output Voltage
230V AC (Single Phase)
Output Frequency
50Hz / 60Hz (Auto Detection)
Surge Power Capacity
12,000VA (Peak)
PV Input Voltage Range
120V – 500V DC
Maximum PV Input Power
Up to 7,000W
MPPT Charger Type
Advanced MPPT
MPPT Charging Current
110A
Number of MPPT Trackers
Single / Dual (Model Variant Dependent)
Battery System Voltage
48V DC
Battery Compatibility
Lithium-ion (LiFePO4), Lead Acid, Gel
Maximum Charging Current (AC + Solar)
120A
Efficiency
Up to 93–95%
Transfer Time
10ms (Typical UPS Mode)
Communication Interfaces
USB / RS232 / RS485 / WiFi / GPRS (Optional)
Display Interface
LCD Display with Smart Controls
Operating Temperature Range
-10°C to 50°C
Lithium Battery (5.12kWh – 51.2V 100Ah)
Battery Type
LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage
51.2V
Capacity
100Ah
Energy Storage
5.12kWh
Cycle Life
≥ 4000 Cycles @ 80% DOD
Depth of Discharge (DOD)
Up to 90%
Battery Management System (BMS)
Integrated Smart BMS
Charging Voltage
56V – 58.4V
Discharge Cut-off Voltage
44.8V – 46V
Max Continuous Charge Current
100A
Max Continuous Discharge Current
100A
Scalability
Expandable in Parallel
Communication Protocols
CAN / RS485
Cooling Method
Natural Air Cooling
Installation Type
Wall-Mounted / Rack Compatible
Ingress Protection
IP20 (Indoor Use)
Operating Temperature Range
Charge: 0°C to 50°C
Discharge: -10°C to 50°C
Ideal Applications
• Residential solar systems with backup
• Hybrid solar + lithium battery installations
• Net billing / self-consumption optimization
• Farmhouses and off-grid setups
• Commercial backup and load management
Description
Smart Energy Management for Homes & Businesses
Power instability does not wait. Neither should your system.
This combo is not just a pairing of hardware. It is a controlled ecosystem—generation, storage, and consumption aligned in one architecture. The EASun 6.2kW Hybrid Inverter coupled with a 5.12kWh LiFePO4 Lithium Battery delivers uninterrupted energy flow, intelligent load management, and optimized solar utilization for Pakistan’s evolving net billing environment.
Where standalone systems fail under inconsistency, this configuration holds.
Key Features
6.2kW Pure Sine Wave Output
Delivers stable, distortion-free power for sensitive electronics, appliances, and continuous load operations.
Integrated Hybrid Architecture
Seamlessly combines solar generation, battery storage, and grid supply into one intelligent system.
Advanced MPPT Technology (110A)
Maximizes solar yield under fluctuating sunlight conditions, ensuring optimal daily generation.
High PV Input Capacity (Up to 500V DC)
Supports flexible solar panel configurations and higher string efficiency.
5.12kWh Lithium Battery Storage
Stores excess solar energy during the day and delivers reliable backup during outages or peak usage.
LiFePO4 Battery Chemistry
Long lifecycle, high thermal stability, and enhanced safety compared to conventional batteries.
Smart Battery Management System (BMS)
Protects against overcharge, deep discharge, temperature variation, and voltage imbalance.
Expandable & Scalable Design
Battery bank can be expanded for higher storage needs as demand grows.
What’s in the Box
• EASun 6.2kW Hybrid Solar Inverter
• 5.12kWh LiFePO4 Lithium Battery (51.2V 100Ah)
• Communication cables
• User manuals
• Mounting accessories
